Box 5

Kit 17 - Wheel assembly

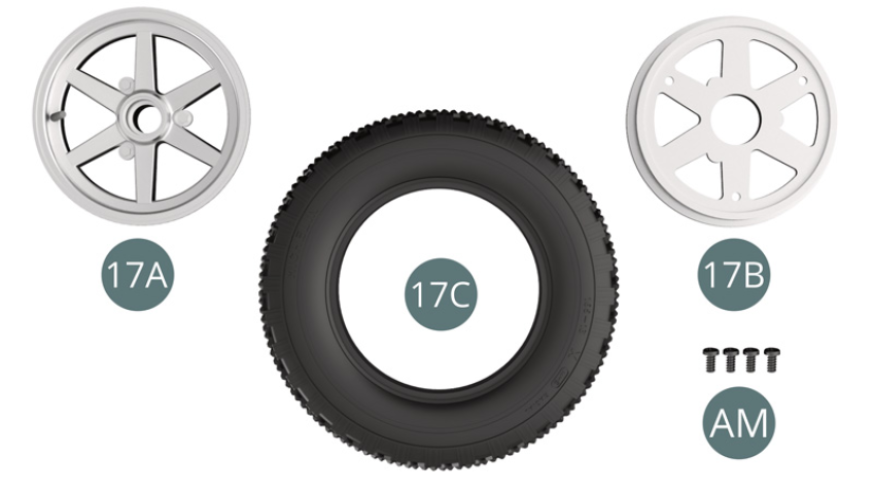

Parts of kit

17A Outer wheel rim
17B Inner wheel rim
17C Tyre
Screw AM M 1.7 x 4 mm (x 4)

17A Outer wheel rim 17B Inner wheel rim 17C Tyre Screw AM M 1.7 x 4 mm (x 4)

STEP 1

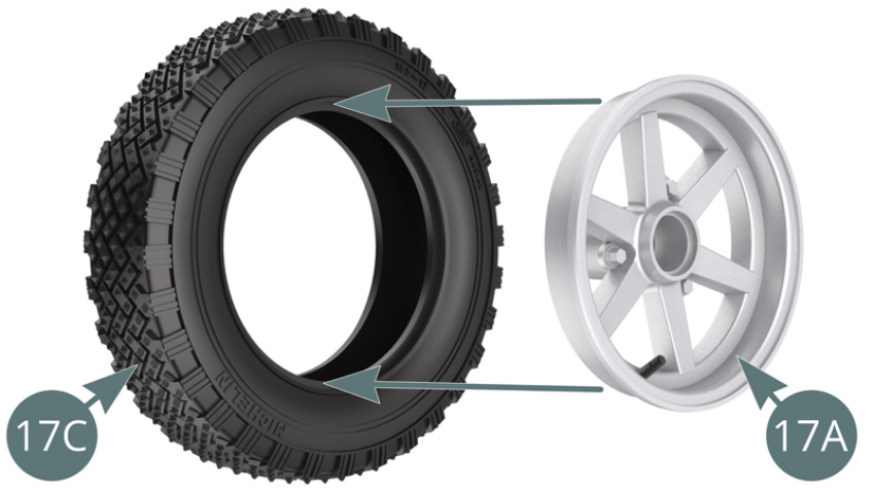

Position the outer wheel rim (17A) into the tyre (17C).

STEP 2

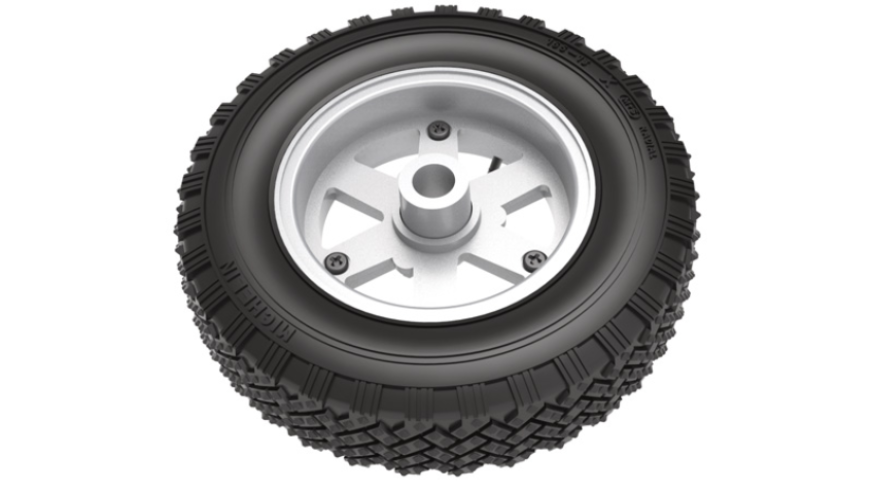

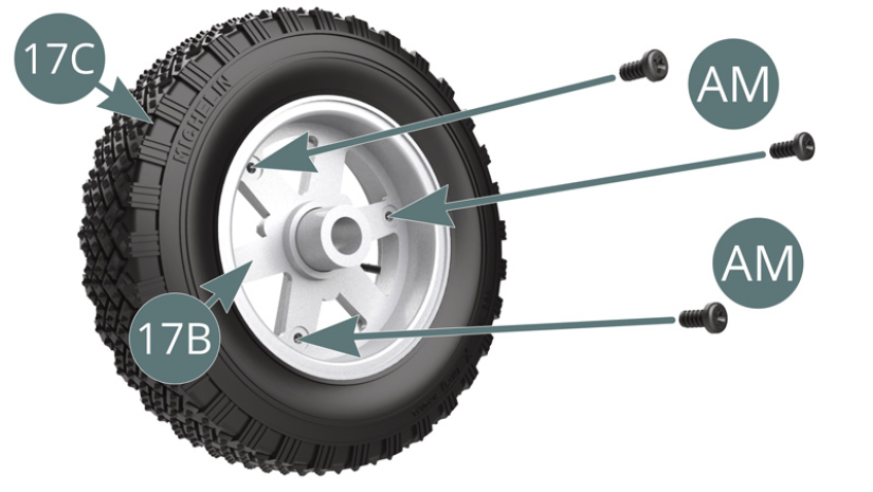

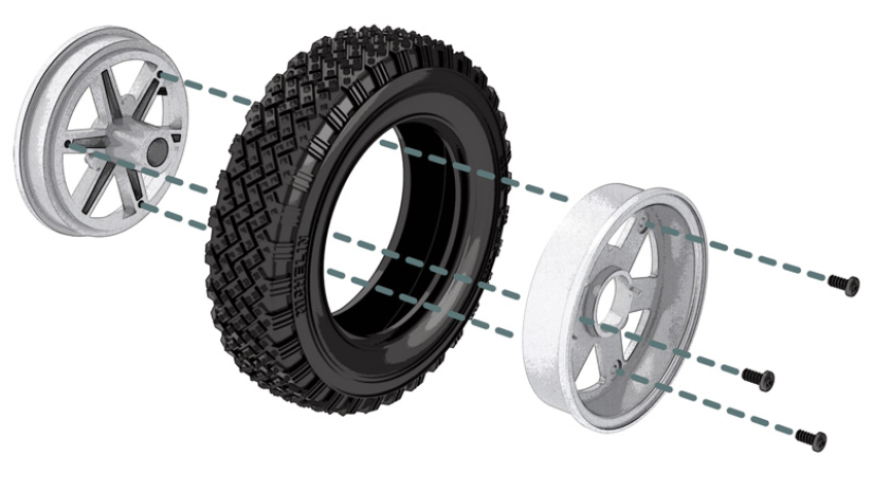

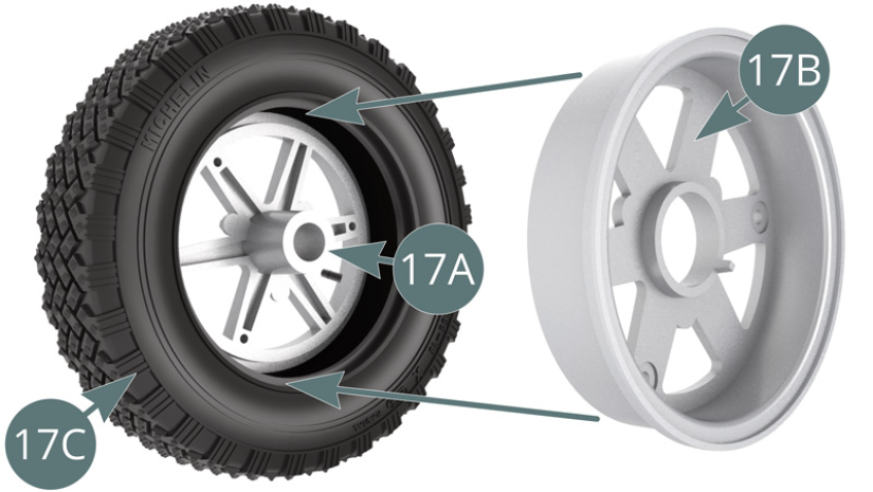

Position the inner wheel rim (17B) into the tyre (17C), aligning it with the outer rim (17A) and securing it with three AM screws (see illustrations opposite and below).

ASSEMBLY DIAGRAM

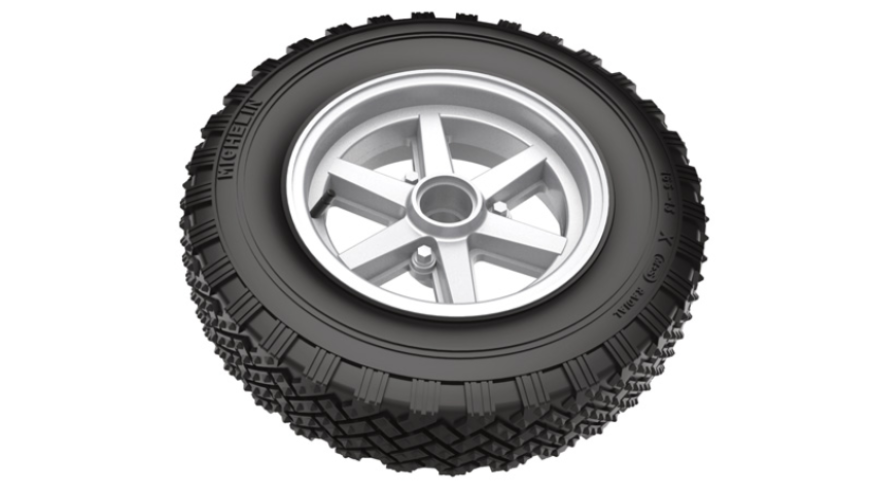

GENERAL VIEW

Kit 18 - Assembly of the engine cradle

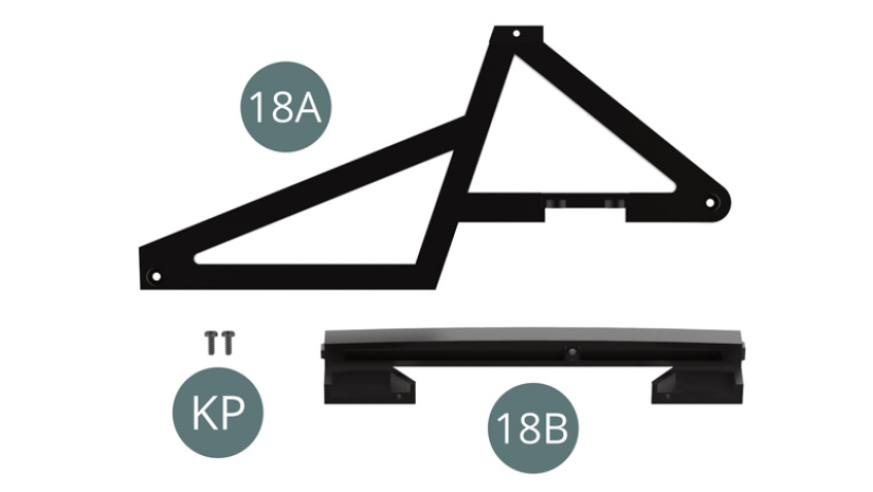

Parts of kit

18A Right frame
18B Lower cross member
Screw KP M 1.4 x 4 mm (x 2)

18A Right frame 18B Lower cross member Screw KP M 1.4 x 4 mm (x 2)

STEP 1

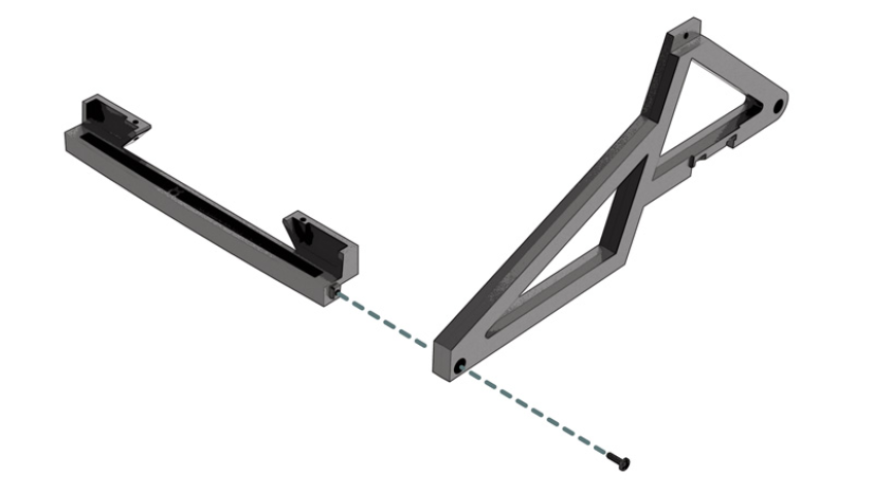

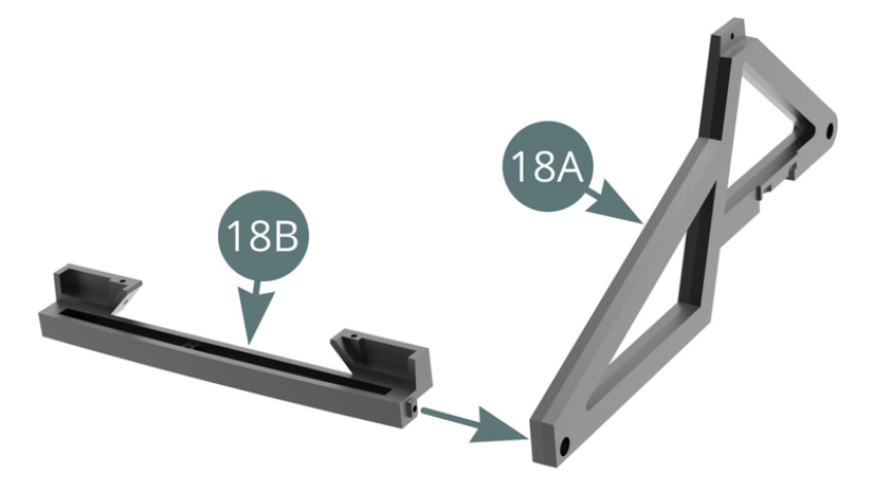

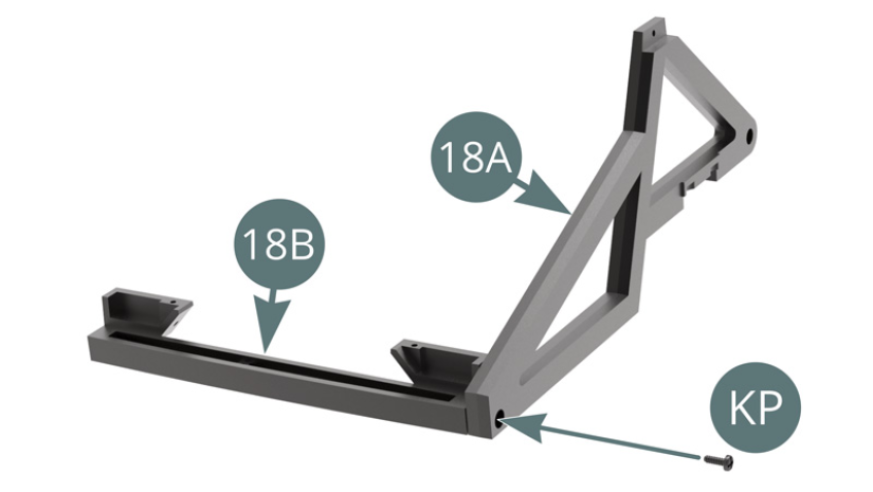

Position the lower cross member (18B) on the right frame (18A) and secure it with a KP screw (shown above).

ASSEMBLY DIAGRAM

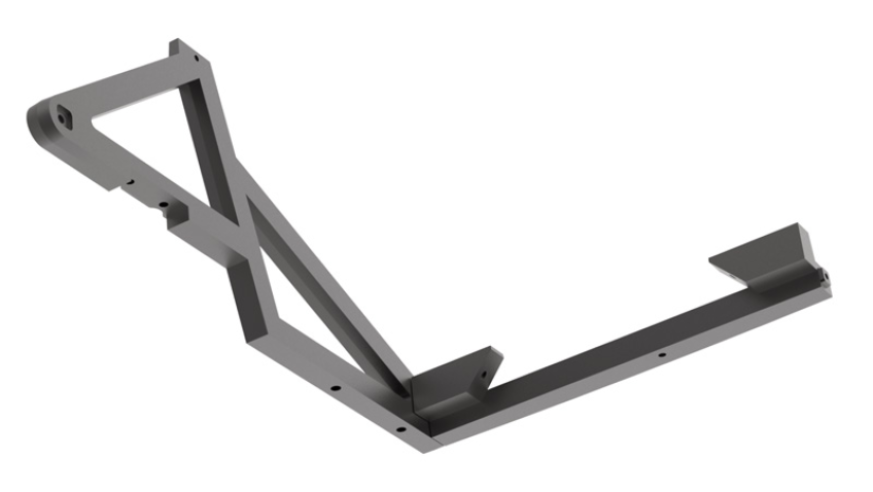

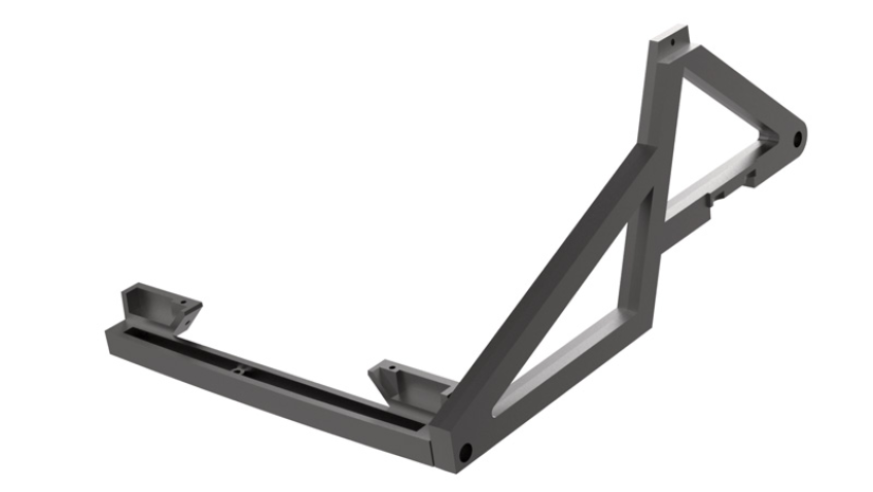

GENERAL VIEW

Kit 19 - Assembly of the engine cradle

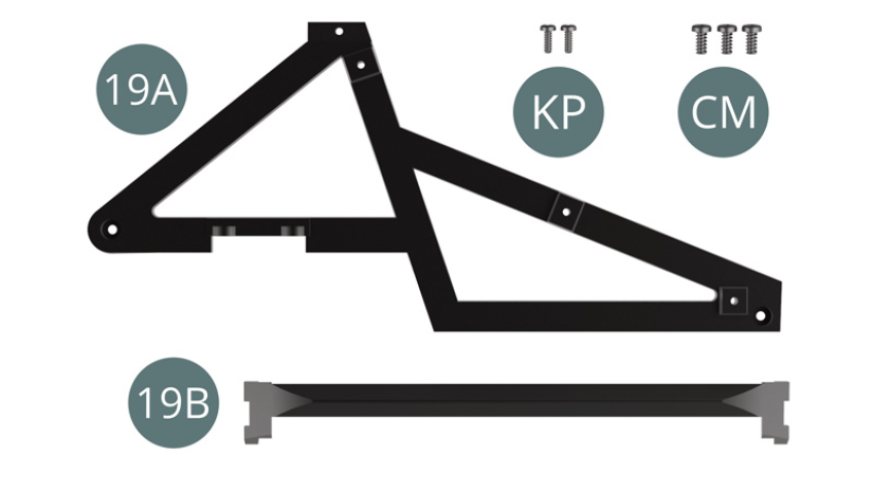

Parts of kit

19A Left frame
19B Upper cross member
Screw CM M 2.0 x 4 mm (x 3)
Screw KP M 1.4 x 4 mm (x 2)

19A Left frame 19B Upper cross member Screw CM M 2.0 x 4 mm (x 3) Screw KP M 1.4 x 4 mm (x 2)

STEP 1

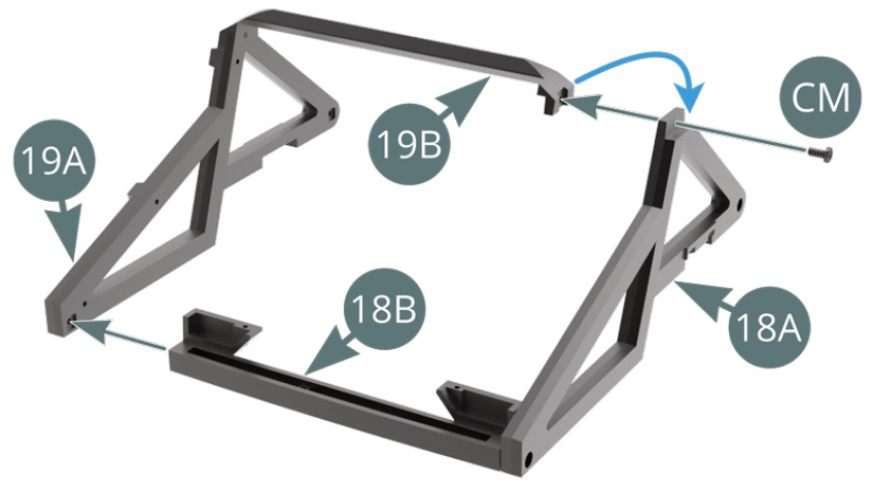

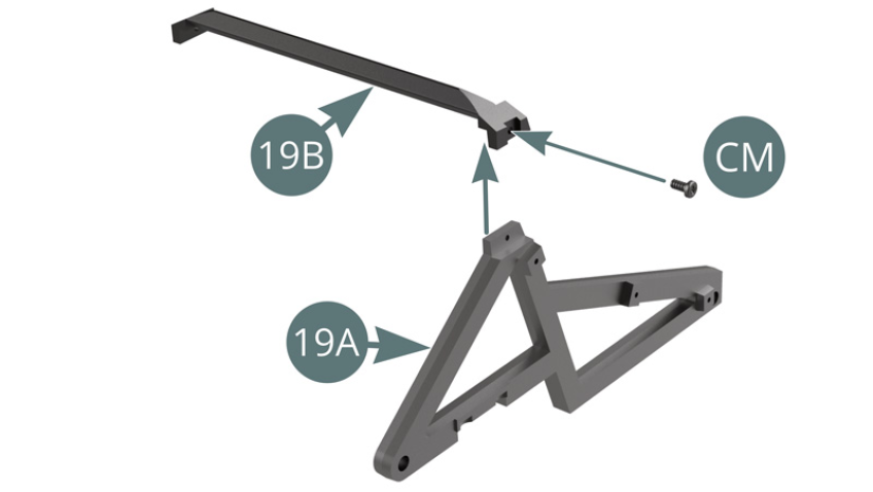

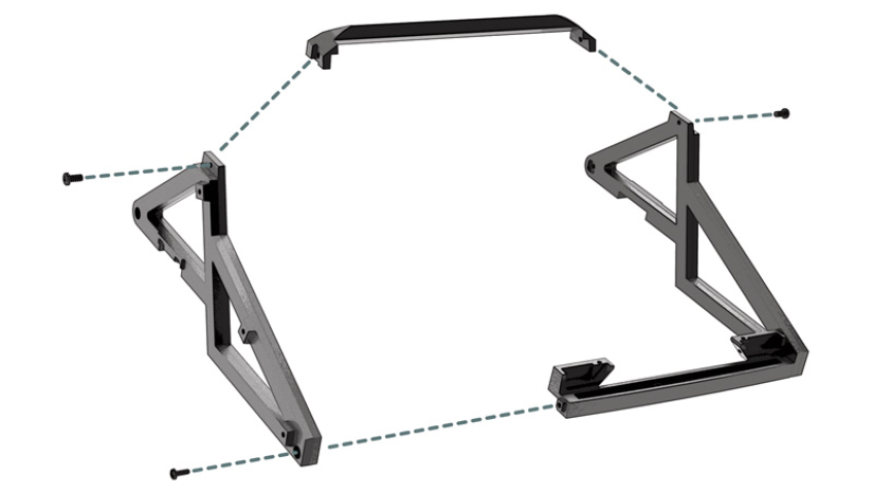

Position the upper cross member (19B) on the left frame (19A) and secure it with a CM screw. Position the lower cross member (18B) on the left frame (19A) and the upper cross member (19B) on the right frame (18A) and secure it with a CM screw.

STEP 2

Attach the lower cross member (18B) to the left frame (19A) with a KP screw.

ASSEMBLY DIAGRAM

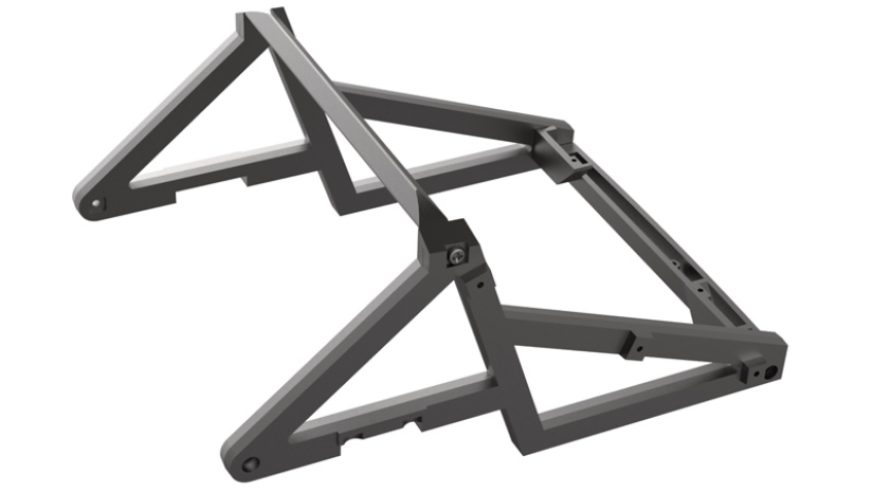

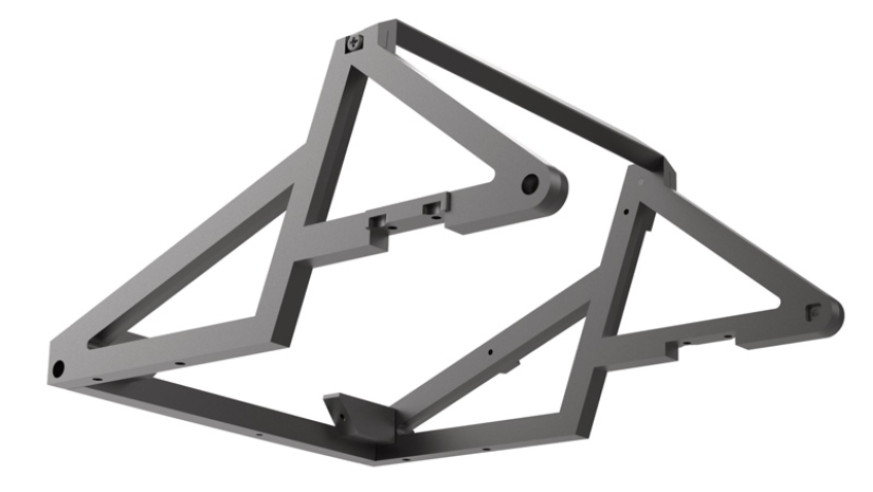

GENERAL VIEW

Kit 20 - Assembly of the engine cradle and mounting on the rear suspension beam and engine cradle bracket

Parts of kit

20A Main frame
Screw CM M 2.0 x 4 mm (x 3)
Screw KP M 1.4 x 4 mm (x 4)

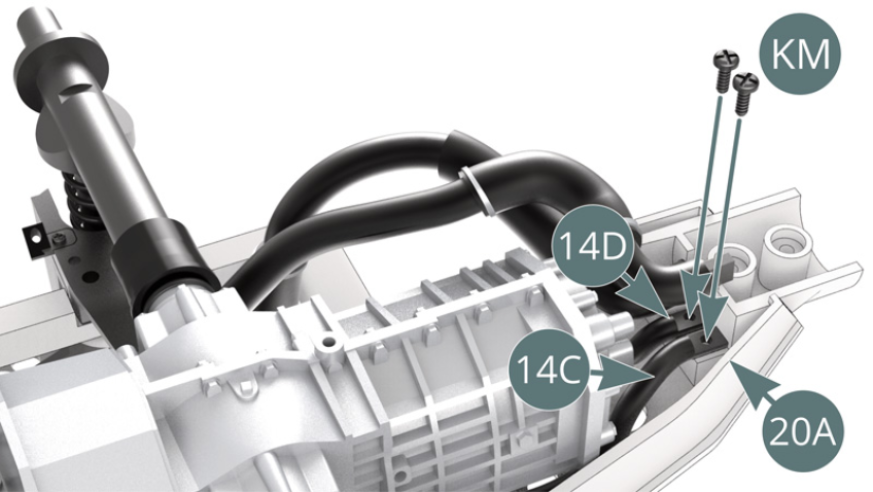

Screw KM M 1.4 x 4 mm (x 3)

20A Main frame Screw CM M 2.0 x 4 mm (x 3) Screw KP M 1.4 x 4 mm (x 4) Screw KM M 1.4 x 4 mm (x 3)

STEP 1

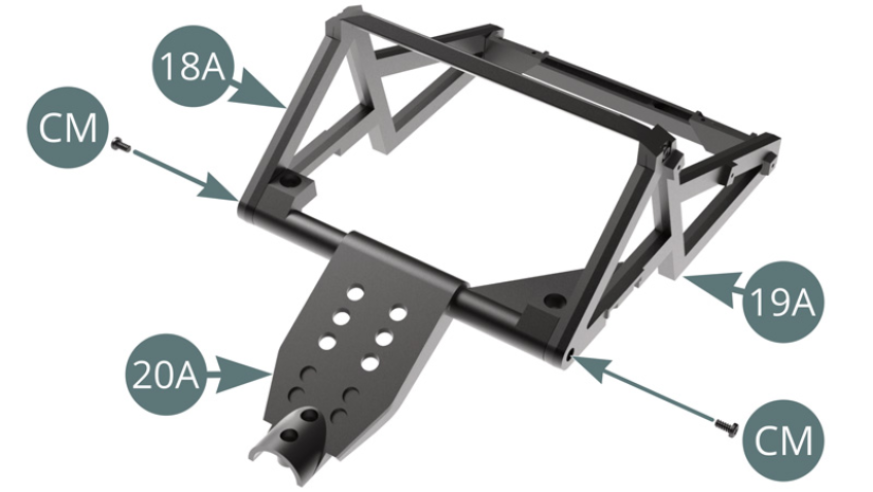

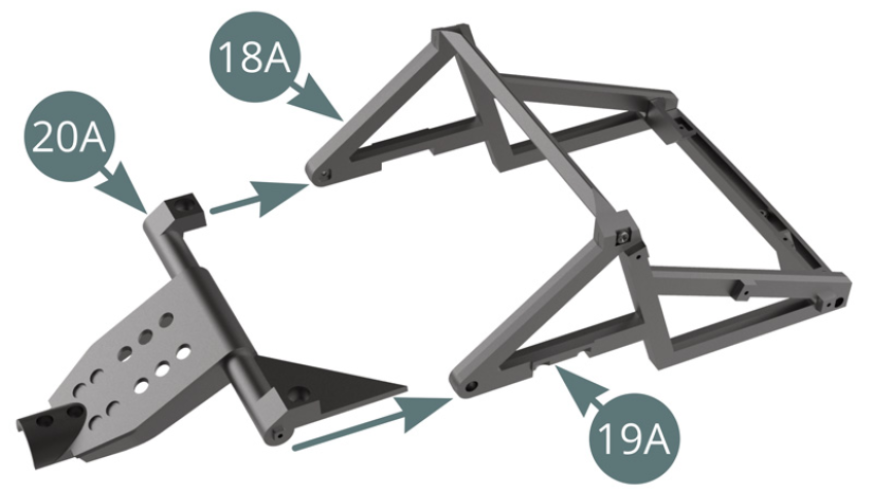

Position the main frame (20A) on the left and right frames (19A&18A) and secure with two CM screws (shown opposite and below)

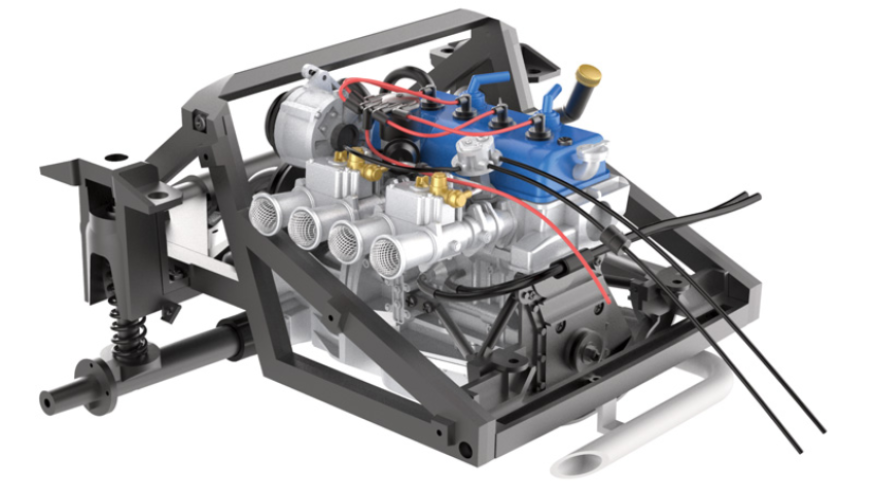

Engine cradle is assembled

STEP 2

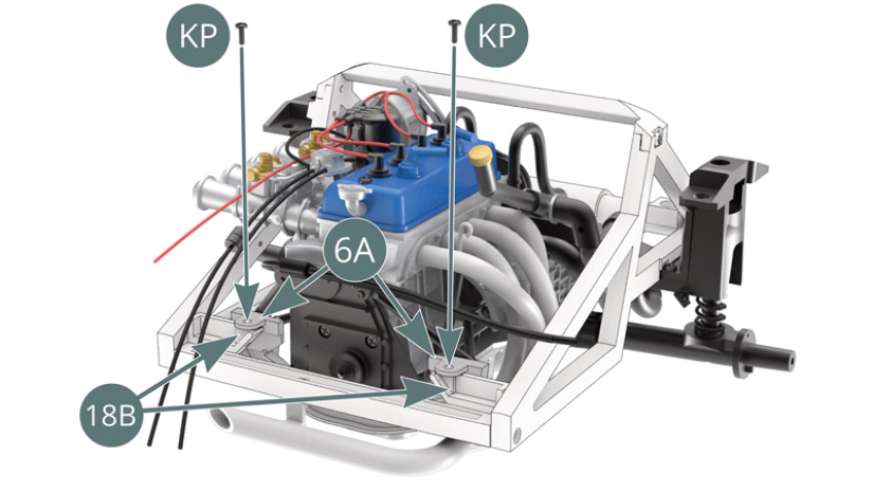

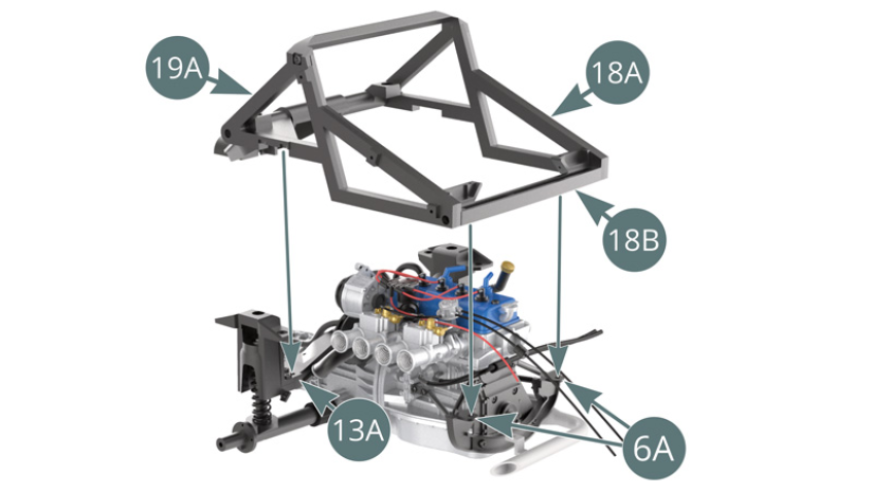

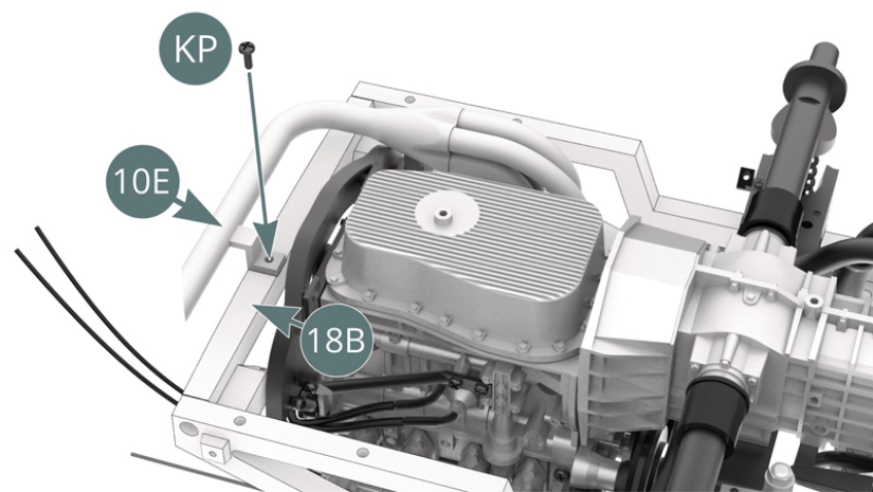

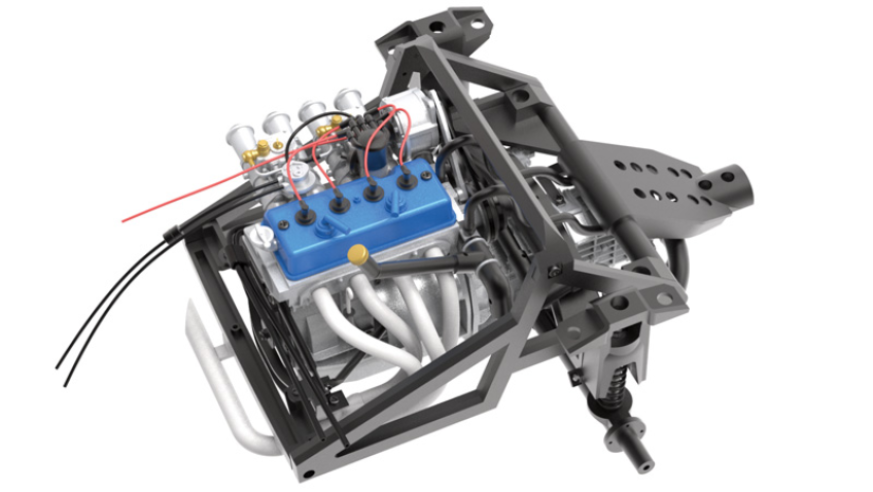

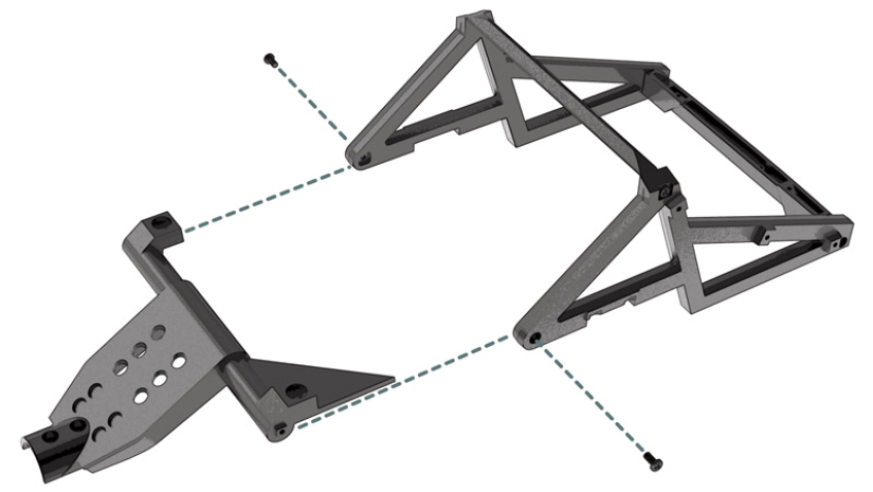

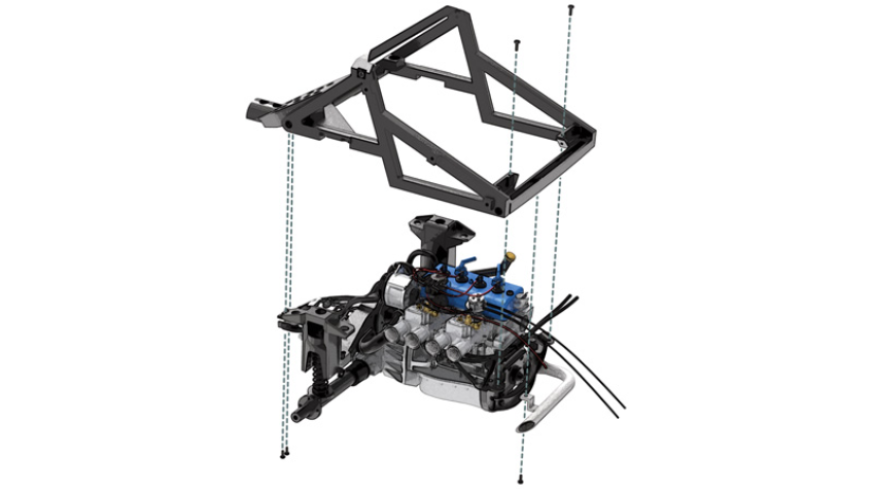

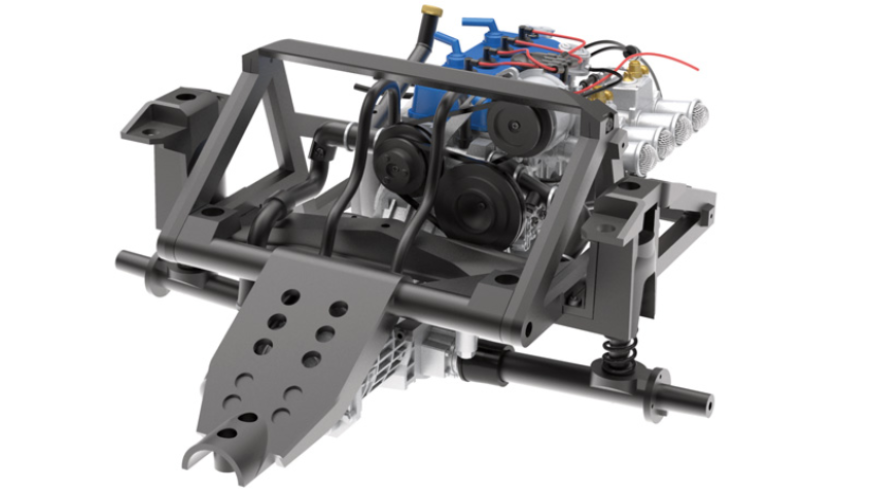

Position the left and right frames (19A&18A) of the engine cradle onto the rear suspension cross beam (13A) and the engine frame bracket (6A) - illustrations opposite and below.
